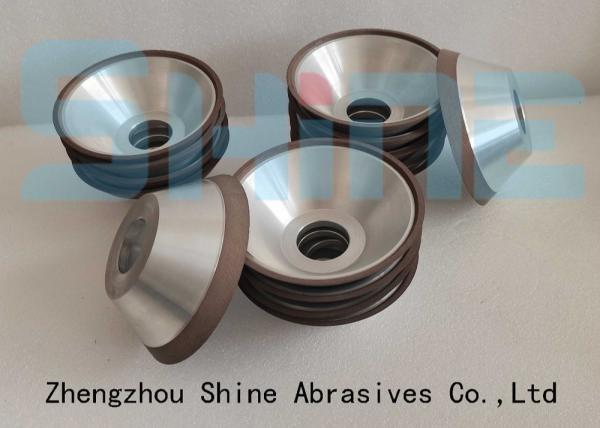

4'' Resin Bond Diamond Abrasive Cup Wheels For Carbide Tools
Shine diamond 4'' Resin bond Diamond 11V9 Flaring Cup are used on tool & cutter grinders for grinding carbide tools.
CBN wheels for HSS tools.
Type 11V9 wheels have the diamond segment along the outer periphery of the wheel.
Resin bonds are the most common bond system for superabrasive grinding wheels.
They are main used for grinding all types of tungsten carbide tools, ceramics, glass, ferrites, refractories and semi-conductors.
It can offer good elasticity, superior surface finish and highly efficient grinding performance.
also the working cost is competitive by resin bond diamond wheel.

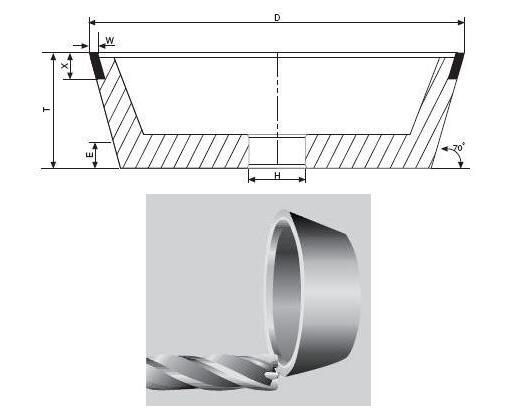

The drawing of Shine Abrasives 4'' Resin Bond Diamond Abrasive Cup Wheels For Carbide Tools
Specifications of Shine Abrasives 4'' Resin Bond Diamond Abrasive Cup Wheels For Carbide Tools
| Abrasive Material:Diamond | Bond Type:Resin |
| Diamond Depth:3mm | Diamond Grit:100 grit,D126 |
| Concentration:100% | Wheel Diameter: 4 inch |
| Wheel Thickness:45mm | Wheel Bore: 1-1/4 inch/31.75mm |
| Wheel Type:11V9 | Wheel Weight:0.4kgs/PC |
2 kinds of Resin Bonds.
01:Phenolic resins.
They are typically used for wet or dry grinding, off-hand grinding, centerless grinding and general purpose tool rooms working.
02:Polyimide resins
It's a considerable performance increase over generic phenolic resins. we can expect them with stock removal,
better form holding, higher temperature tolerance and minimal wear when grinding with polyimide bond wheels.
In Shine Abrasives, we make lots of resin bond diamond and CBN wheels each working days.
So many experiences have got for us.

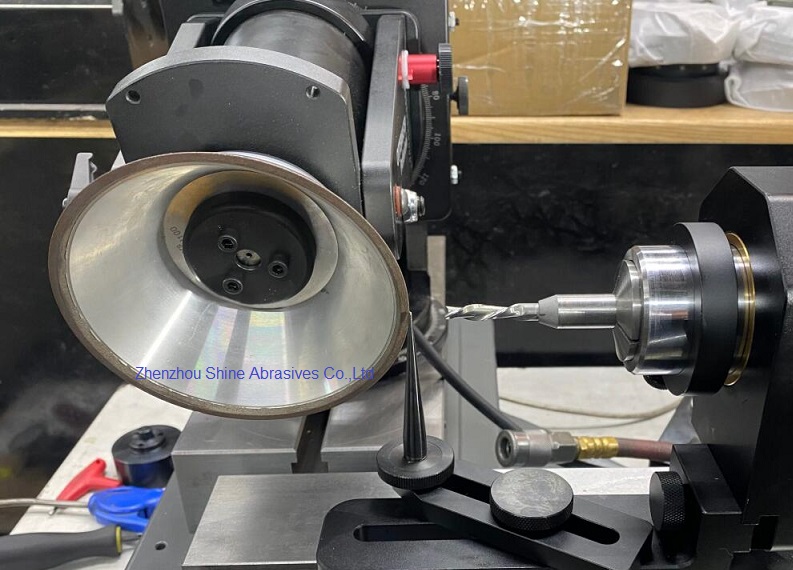

Application picture for reference.
Attention:Workers should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels
