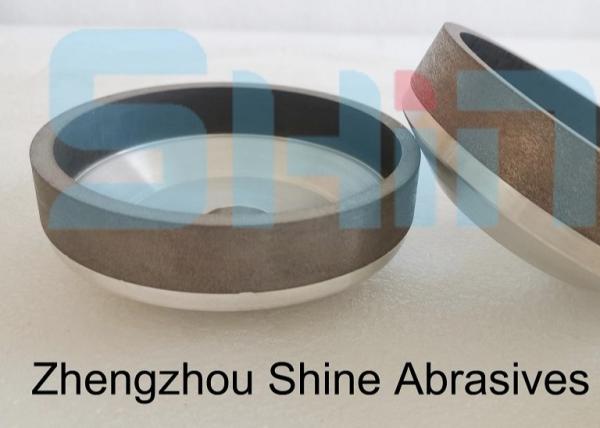

Bowl Shape 100mm Metal-Ceramic Bonded CBN Grinding Wheel
Shine Abrasives Metal-ceramic bonded grinding tools are pressed at high temperatures, similar to metal bonded tools.
Metal-ceramic-bonded grinding wheels are used for grinding sapphire ceramics and oxide ceramics.

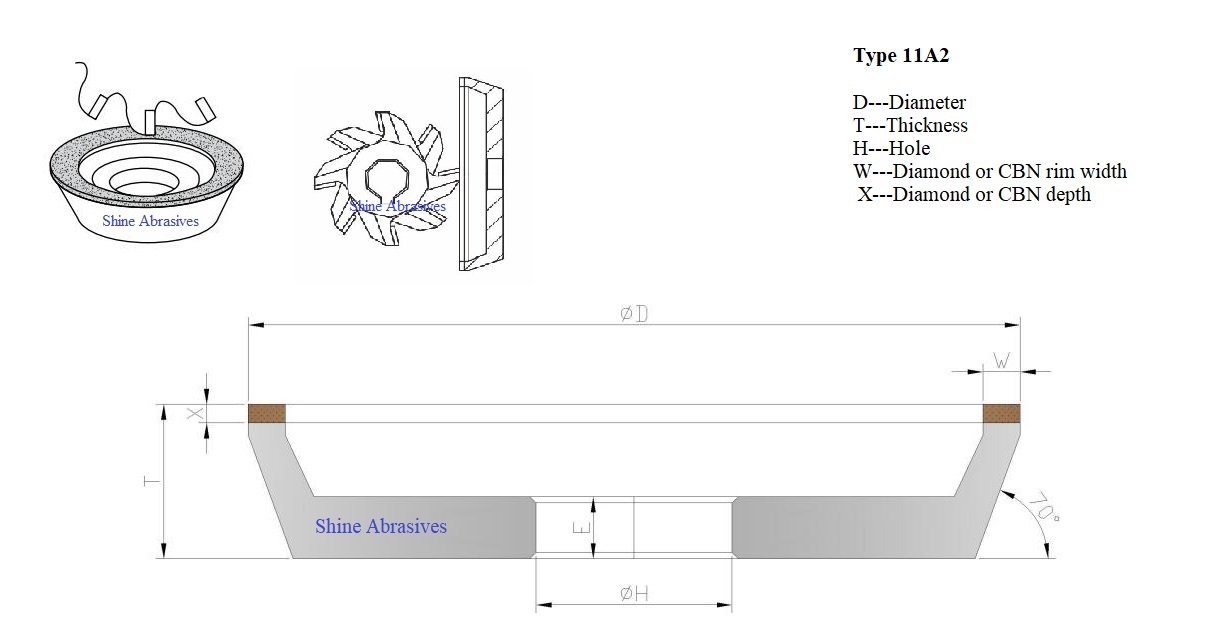

The drawing of Shine Abrasives Bowl Shape 100mm Metal-Ceramic Bonded CBN Grinding Wheel
Main sizes form of Shine Abrasives Bowl Shape 100mm Metal-Ceramic Bonded CBN Grinding Wheel
| Abrasive Material:CBN | Bond Type: Metal-Ceramic Hybrid |
| CBN Grit:100# | Wheel Diameter: 4 inch 100mm |
| Wheel Bore:20mm | Wheel Weight:1.0kgs/PC |
| Wheel Thickness:35mm | Concentrate: 100% |
Other standard sizes also are available as requested.
Introduction of Shine Abrasives bonded wheels and tools.
01:
Diamond and CBN grinding wheels in resin bond:
resin bonded grinding tools ensure cool grinding and high cutting performance. Diamond and CBN Grinding with resin-bonded tools can be done by wet grinding or dry grinding. resin bonded grinding wheels are ideally suited for achieving the highest surface quality.
02:
Diamond and CBN grinding wheels in metal bond:
The metal bond is characterized by a high thermal load capacity. The large grain holding force of the metallic bond provides excellent shape retention during grinding.
Perfectly suitable grinding wheel binding for profile grinding or groove deep grinding of solid carbide milling cutters.
03:
Diamond and CBN grinding wheels in ceramic or vitrified bond:
Ceramic bonded grinding tools are manufactured without pressing pressure. As a result, the ceramic grinding wheel binding is
characterized by an excellent dressing
Applications of Shine Abrasives bonded wheels and tools.
Shine Abrasives Diamond grinding wheels are used in the machining of carbide, ceramics, glass, composite materials, GRP, and CFRP.
Shine Abrasives CBN grinding wheels
CBN (Cubic Boron Nitride) grinding wheels are suitable for difficult to machine and high alloyed hardened steels from 54 HRC, Hardened Materials, HSS, Tool Steels, Hard cast, Special Alloys and Stellite.
Grinding ways of Shine Abrasives bonded wheels and tools.
Centerless grinding
Surface grinding
Internal cylindrical grinding
External cylindrical grinding
coordinate grinding
Profile grinding
Thread grinding
Grinding camshafts
Grinding crankshafts
